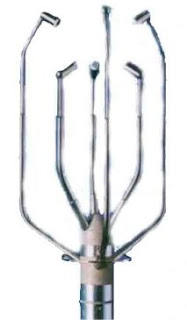

Sonic WA-790 Clean Room Ultrasonic Anemometer 3-D



Sonic DA-790 is an application for the reality grasp, the planning and the evaluating of airflow in a cleanroom.

Feature

• Measurement of 3-Dimensional Wind Velocity Components
  With the combination of three-axis of x, y, and z, you can get very precise wind speed & direction.
• Measurement of 0m/sec Wind Velocities and 0.5 sec in Response
  Free from self-heating, capable of measuring wind speed from 0m/sec.
• Measurement of Turbulent Airflow
  Capable of measuring the turbulent airflow caused by the facilities, in the cleanroom.
• Fluctuating Temperature/Humidity Effect Free Observation
  Theoretically zero error, free from the change in temperature.

Specification

• Measurement mode: Time-sharing transmission/reception switching type ultrasonic pulse emission
• Measurement range: 0～ 10 m/s
• Accuracy: ±(2%+0.02m/s of the absolute value of indicated value) At the main wind direction after measure zero adjustment
• Resolution: 0.005m/s (wind)
• Power source: AC100～240V±10％

『Attached software (WASP-007N)』

• • OS: ：Windows 7, 10
  • Communication: USB port
    ･ Real-time monitoring
    ･ Change of wind velocity is displayed on the pen plotter screen
    ･ Data logging and playback
    ･ Three-dimensional display of airflow
    ･ Observing of multi-points and Viewing of multi-angles
    ･ Data save in JPEG and AVI

Data Sheet: Sonic WA-790 Ultrasonic Anemometer For clean room
